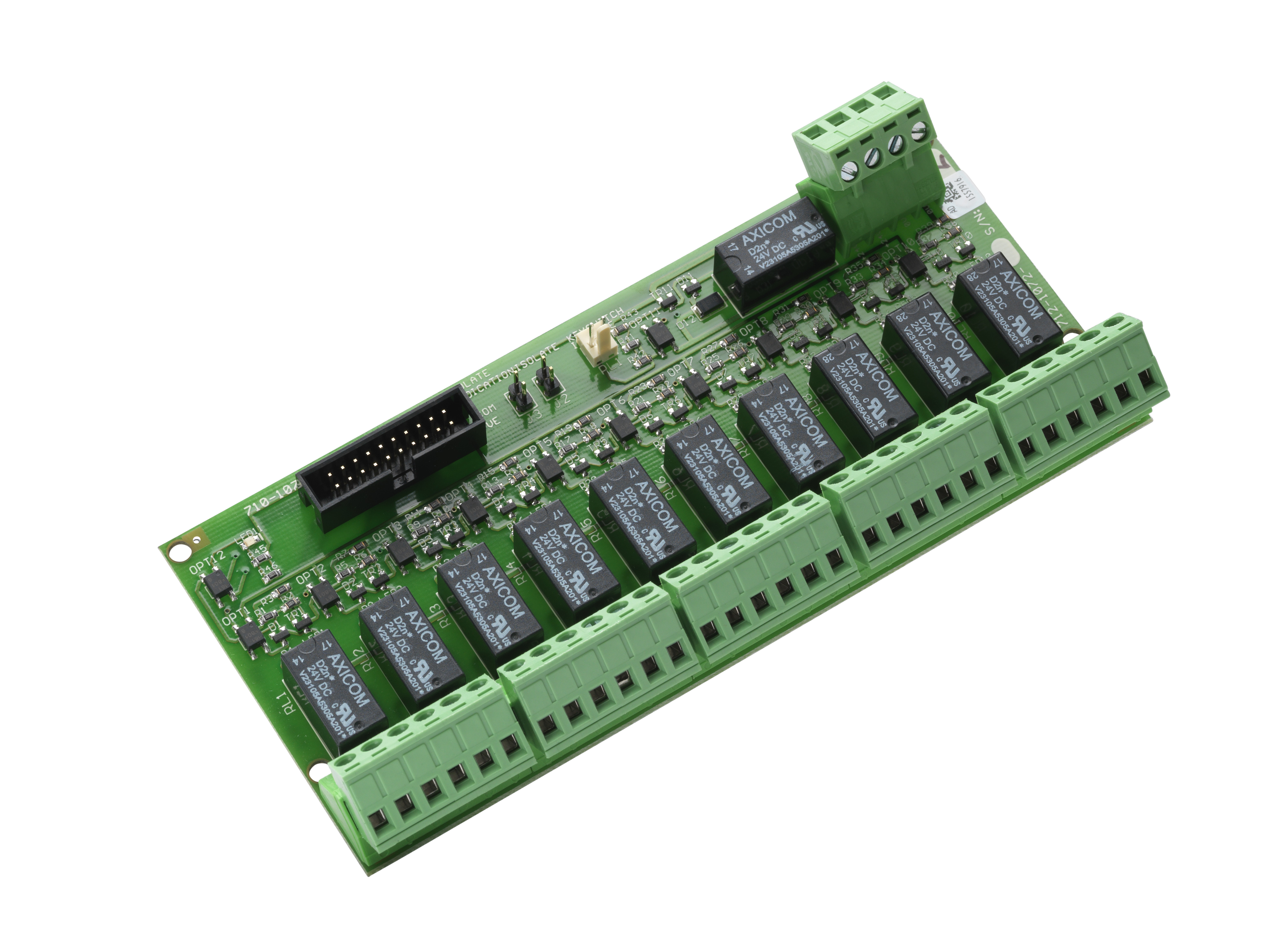

Peripheral Relay Card - obsolete
The Peripheral Relay Card is a peripheral relay card providing 10 30V DC, 1A programmable relay outputs.
It connects directly to any of the DIL connectors of either the Network Mimic Mxp-020-100 LED Output Card, the general I/O controller Mxp-045 LED Output Card or the Multi-Way Input/Output card via the supplied ribbon cable.
Each output follows the cause-and-effect programming of the mimic unit output. This can be either a simple zone output or can be an individually programmed output group rule utilising dynamic zoning.
Applications
These units can be used where many relay outputs are required for simple on/off signalling or control.
Features
- Ten change-over contact outputs rated at 30V DC, 1A.
- Up to 200 individual relay outputs fully programmable per mimic (excluding LEDs)
- Ten individually programmable relay outputs per unit
- DIN rail or screw fixing options
- Separate isolate input (disables all outputs)
- Separate isolate indication output
- Fast instant response
Specification
| Enclosure Dimensions H x W x D mm | PCB: 90 x 160 x 15 |
| Enclosure Dimensions H x W x D mm | DIN rail: 90 x 160 x 40 |
| DIN rail | Module mounts onto 32mm G Section and 35mm top hat (En50022) DIN rail |
| PCB Dimensions H x W x D mm | 35 x 142 x 70 |
| Operating Temperature | -5°C to 40°C |
| Relay Contacts | 10 volt free change over contacts |
| Contact Rating | 30V DC, 1A resistive |
| Power Supply (Card) | 24v DC nominal (21-28V DC) |
| Current (@24V DC) | Quiescent: 0mA, relay on:13mA (per relay) |
| LED Indication | Relay circuit on (per relay) |
| Disable Control Inputs | Volt free input and mimic output drive option |
| Disable Indication | Open collector output |
Order Codes and Options
| MXP-052: | 10 Way Relay Card |
| MXP-052-DIN: | 10 Way Relay Card in DIN Rail Carrier |
Compatibility
Can be used with any of the mimic units or the Multi Way I/O units.
