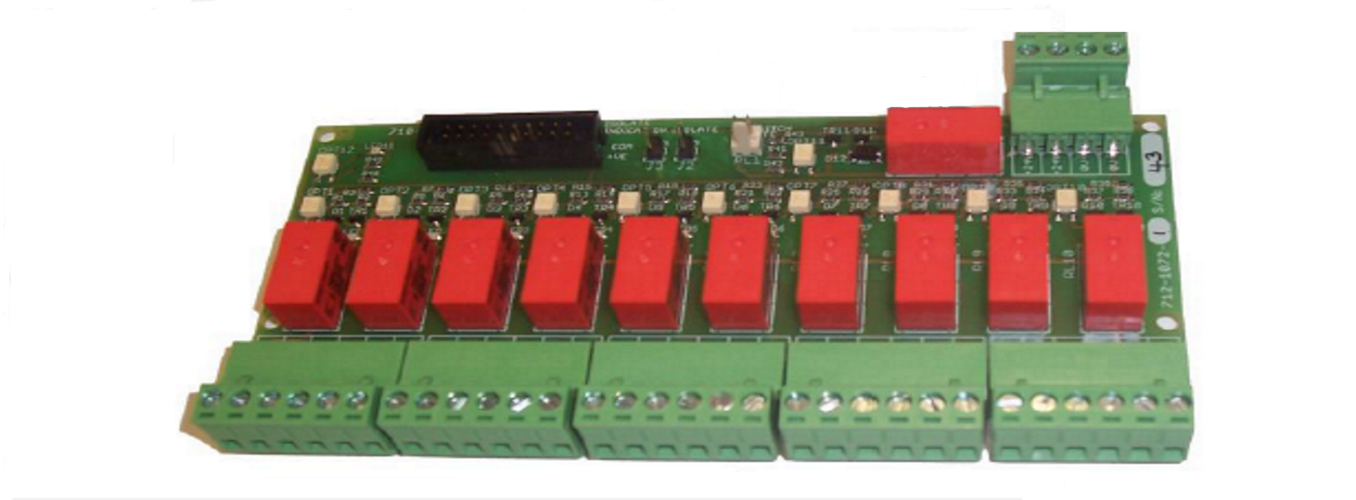

Mimic Relay Card - obsolete
The Peripheral Relay Card provides 10 30V DC, 1A programmable relay outputs.
The Peripheral Relay Card connects directly to any of the DIL connectors of either the Network Mimic 100 LED Output Card or the Multi way Input/Output Card unit via the supplied ribbon cable.
Each output follows the cause-and-effect programming of the mimic unit output.
This can be either a simple zone output or can be an individually programmed output group rule utilising the full range of features of the MxPro 5 and Axis EN dynamic zoning facilities.
Applications
These units can be used where many relay outputs are required for simple on/off signalling or control.
Features
- Ten change-over contacts outputs at 30Vdc, 1A
- DIN rail or screw fixing options
- Seperate isolate input (disables all outputs)
- Seperate isolate indication output
- Fast response
Specification
| Enclosure Dimensions H x W x D mm | PCB: 90 x 160 x 15 |
| Enclosure Dimensions H x W x D mm | DIN rail: 90 x 160 x 40 |
| DIN rail | Module mounts onto 32mm G Section and 35mm top hat (En50022) DIN rail |
| PCB Dimensions H x W x D mm | 35 x 142 x 70 |
| Operating Temperature | -5°C to 40°C |
| Relay Contacts | 10 volt free change over contacts |
| Contact Rating | 30V DC, 1A resistive |
| Power Supply (Card) | 24v DC nominal (21-28V DC) |
| Current (@24V DC) | Quiescent: 0mA, relay on:13mA (per relay) |
| LED Indication | Relay circuit on (per relay) |
| Disable Control Inputs | Volt free input and mimic output drive option |
| Disable Indication | Open collector output |
Order Codes and Options
| Mxp-052: | Mimic driven 10 way relay card |
| Mxp-052-DIN: | Mimic driven 10 way relay card in DIN rail carrier |
Compatibility
Can be used with any of the network mimic units or the multi-way Input/Output card
