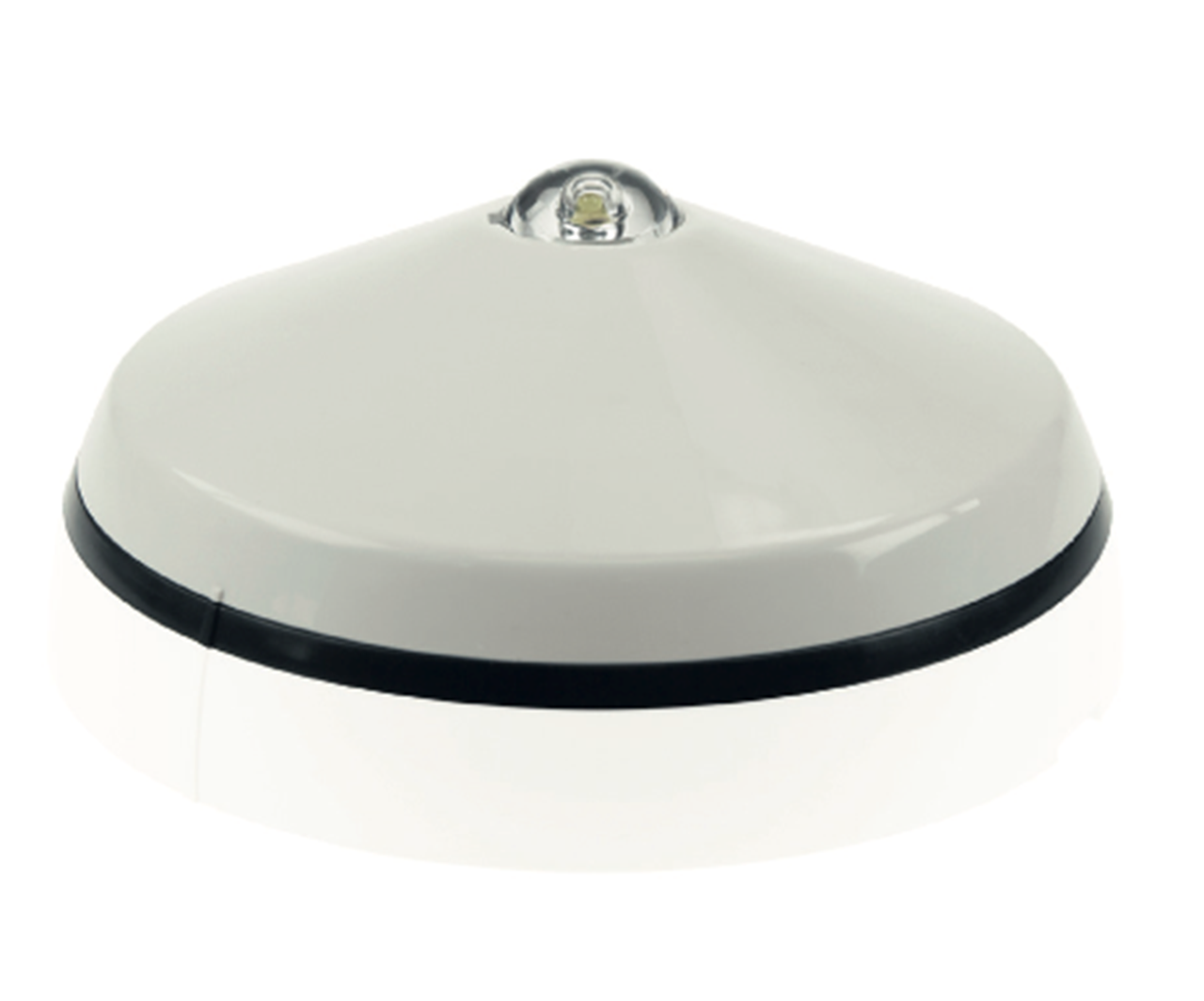

Conventional Ceiling Mounted Beacon (EN54-23)
The Conventional Ceiling Mounted Beacon is a high-intensity Visual Alarm Device (VAD). The unit is ideal for providing a warning signal in areas where sounders are not practical such as noisy environments or where sounders are not appropriate such as hospital theatres.
Fitting the device is by use of a standard detector base mounted on the ceiling where it has been third party approved to the requirements of EN54-23.

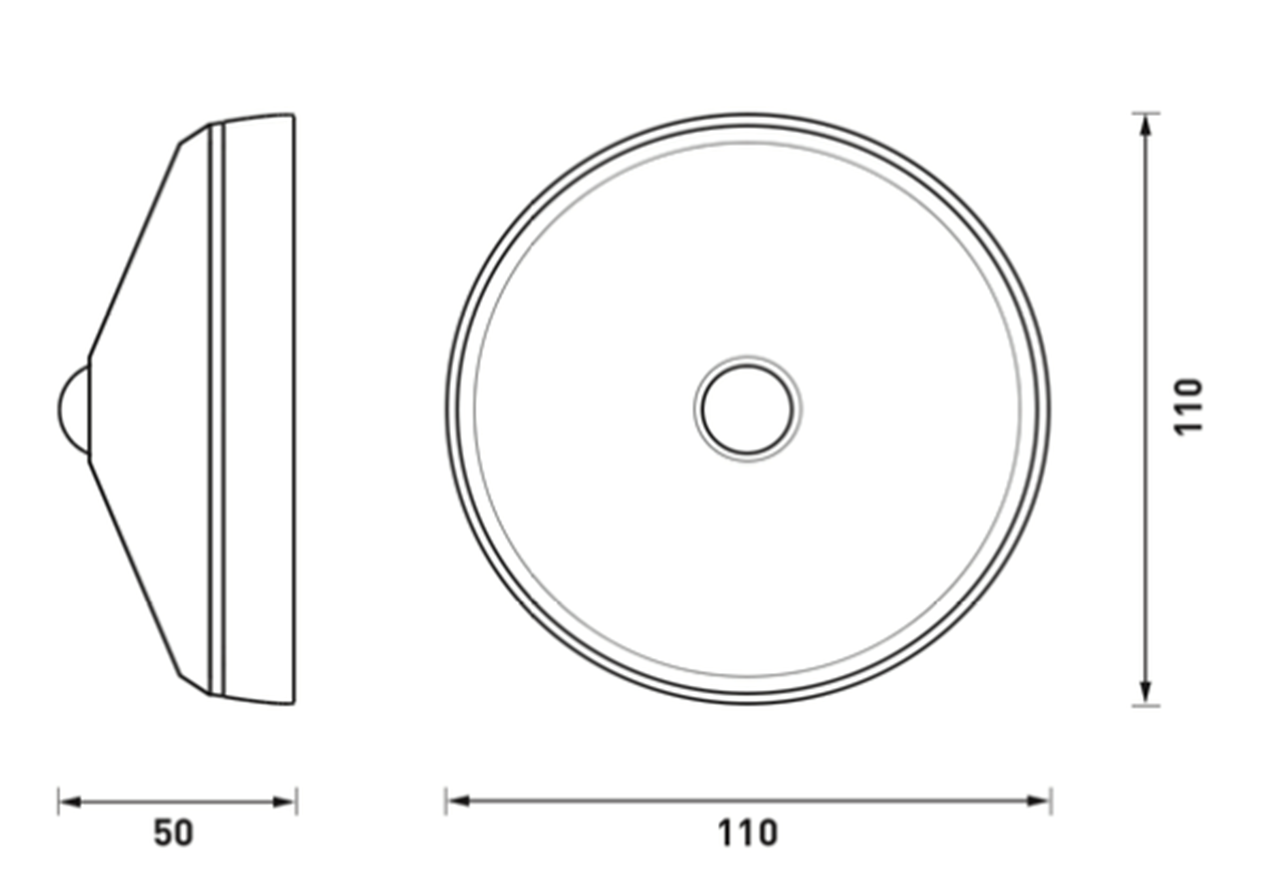

Dimensions
Features
- Low power, high output LED technology
- Coverage radius of 7.5m when installed at a ceiling height of 3m
- Flash rate of 0.5Hz (1 every 2 seconds)
- Anti-tamper lock to prevent unauthorized removal
- 3rd Part approved EN54-23
- Easy central cable entry
- Utilises a standard detector base
- High intensity white coloured LED
Listings and Approvals
- EN 54-23
Specification
| Loop Voltage | 15Vdc - 40Vdc |
| Activated Current | 10 mA at 24Vdc |
| Dimensions W x H | 110mm x 50mm |
| IP Rating | 21 |
| Weight | 120 g |
| Operating Temperature (no icing) | -10oC to +55oC |
| Max Humidity (non condensing) | 95% RH |
| LED Colour | White |

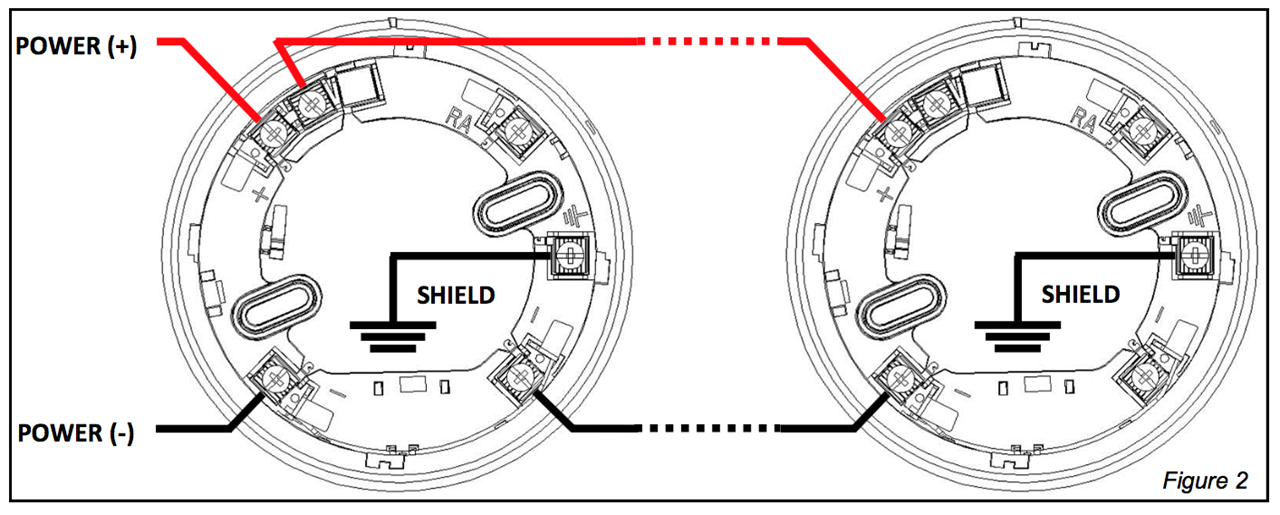

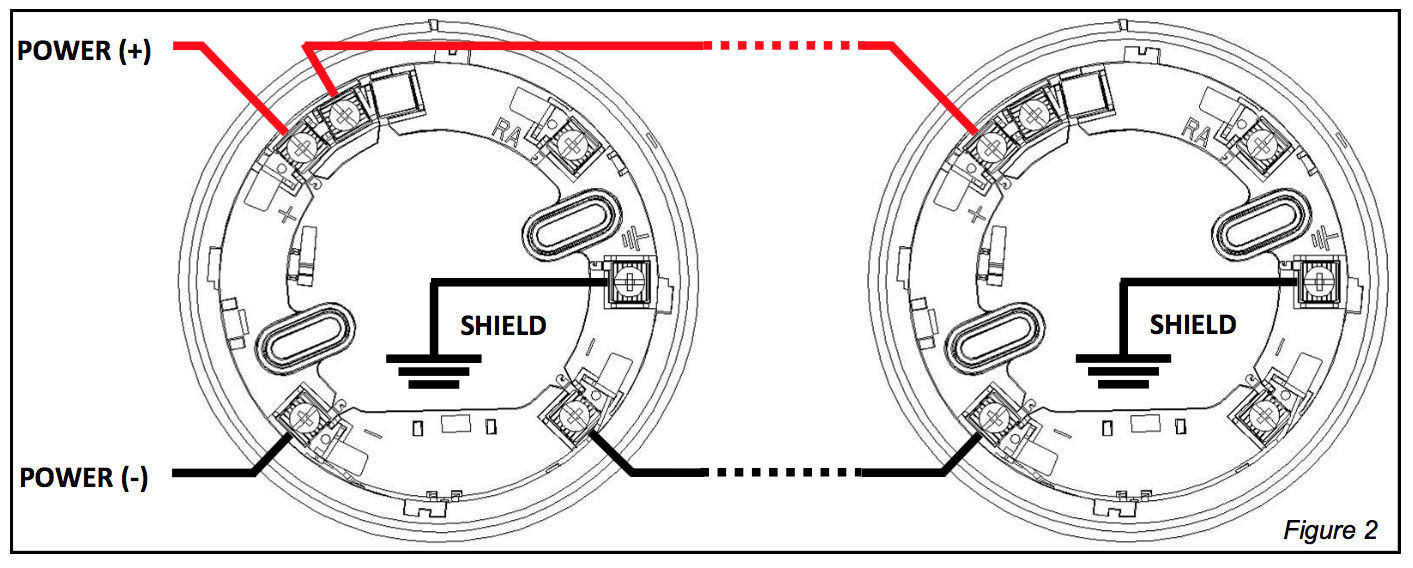

Wiring Diagram
Order Codes and Options
| 20-CBE1002 | Conventional Ceiling Mounted Beacon (EN54-23) |
